More affordable Audi e-tron 50 quattro coming

By CARSIFU | 5 August 2019


INGOLSTADT: A second version of the Audi e-tron charged with opening up the benefits of the first fully electric Audi to a wider audience has been confirmed for series production and will launch in 2020.

The e-tron 50 quattro will complement the existing e-tron 55 quattro model, its 71 kWh battery and two electric motors providing for a range of up to 300km according to the WLTP test cycle and its 120kW charging capability facilitating recharging to 80 per cent capacity in around 30 minutes at fast-charging stations.

A product of the carbon-neutral Audi Brussels plant, the e-tron 50 quattro combines a high level of efficiency with strong and instantly accessible performance.

A1910356_large

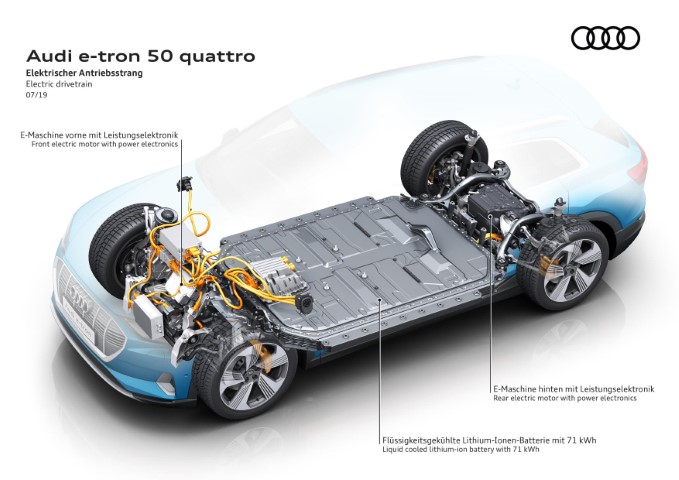

Like the versions which came before it, the entry-level model also features ‘e-quattro’ all-wheel-drive delivered by an electric motor mounted on each axle – in this application these generate a combined total of 230 kW and 540 Nm of torque, and are capable of propelling the electric SUV from 0 to 100kph in 7.0 seconds on the way to an electronically governed top speed of 190kph.

In order to achieve the highest efficiency, only the rear electric motor is active in most driving situations, while the front electric motor is activated predictively when needed.

A1910351_large (1)

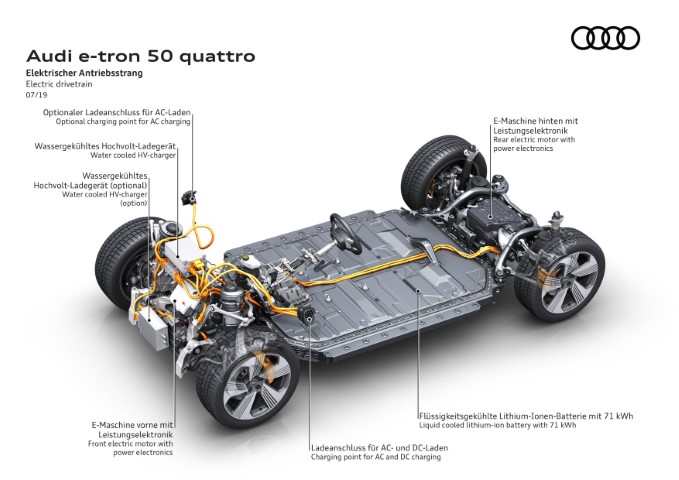

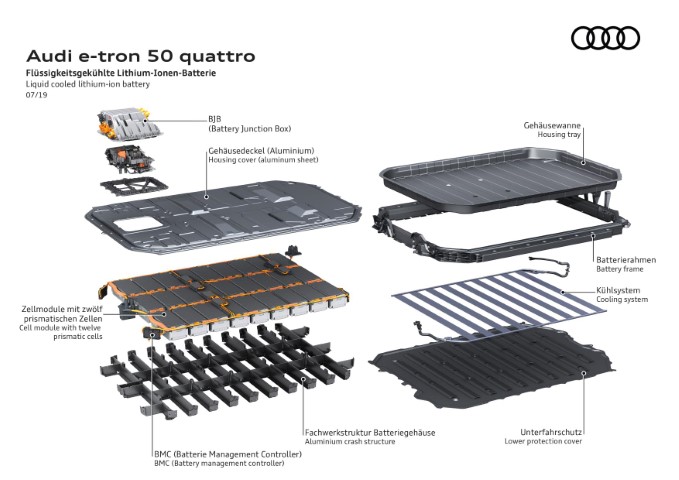

The battery unit of the e-tron 50 quattro comprises 324 prismatic cells combined in 27 modules. These store up to 71 kWh of energy, which is delivered via a newly calibrated drivetrain and a high voltage system featuring additional optimisations for this application, and facilitate a range of up to 300km in the WLTP cycle.

The lower gross weight, which also reduces running resistance, contributes to efficiency, as does the advanced thermal management system with its standard thermal pump. This system regulates the temperature of the interior as well as the battery and cools the electric motors, the power electronics and the charger. In this way it ensures that the high-voltage components enjoy a long service life and enables fast charging with direct current (DC).

A1910362_large
A1910363_large
A1910364_large


The optional connect charging system, available later this year, adds smart charging functions such as off-peak charging, enabling customers to benefit from variable electricity rates by charging their Audi e-tron at more inexpensive times.

In combination with a home energy management system, customers can benefit from additional advantages such as the option to charge with self-generated solar power if a home photovoltaic system is installed. Using the myAudi app, customers can control all charging processes and timers as well as pre-entry climate control via their smartphone.

A1910352_large


Like the more powerful version of the electric SUV, the e-tron 50 quattro also recuperates energy via its two electric motors, with priority given to the rear motor, during more than 90 percent of all deceleration actions. This means that the energy from practically all normal braking manoeuvres is recovered and fed back into the battery.

The newly developed wheel brake system with electrohydraulic actuation is activated only when the force of deceleration exceeds 0.3 g. This results in short braking distances in all situations. The standard efficiency assistant also helps the driver to adopt an economical driving style through automatic recuperation and predictive information in the Audi virtual cockpit.

The system uses radar sensors, camera images, navigation data, and Car-to-X information to detect the traffic environment and the route. In combination with the adaptive cruise assist, the efficiency assistant can also brake and accelerate the electric SUV predictively.

A1910357_large
